Roasting made pleasant with Stronghold filters
J7 & JT is easy to install and a 7 layer-filter with HEPA and carbon activated filters which can effectively filter out all particulate matter (PM) along with roasting odor and VOC.
Ultimate smoke filter system designed for cost efficient, environment friendly, and easy to maintain compared to the conventional system.
+ Closer look at our Smoke Filters
+ Closer look at our Smoke Filters
- 1 Chaff filter
Large particles such as silverskin of the coffee (J7 is not included)
- 3 Glass filter
Large and medium particles
- 5 Medium filter
Up to 70% of particles (> 2.5 µm)
- 7 Carbon activated filter
Odors and VOC
- 2 Demister
Moisture and smaller chaff
- 4 Pre filter
Medium and small particles
- 6 HEPA filter
Up to 99.9% of particles (> 2.5 µm)
Unparalleled production capability and repeatability

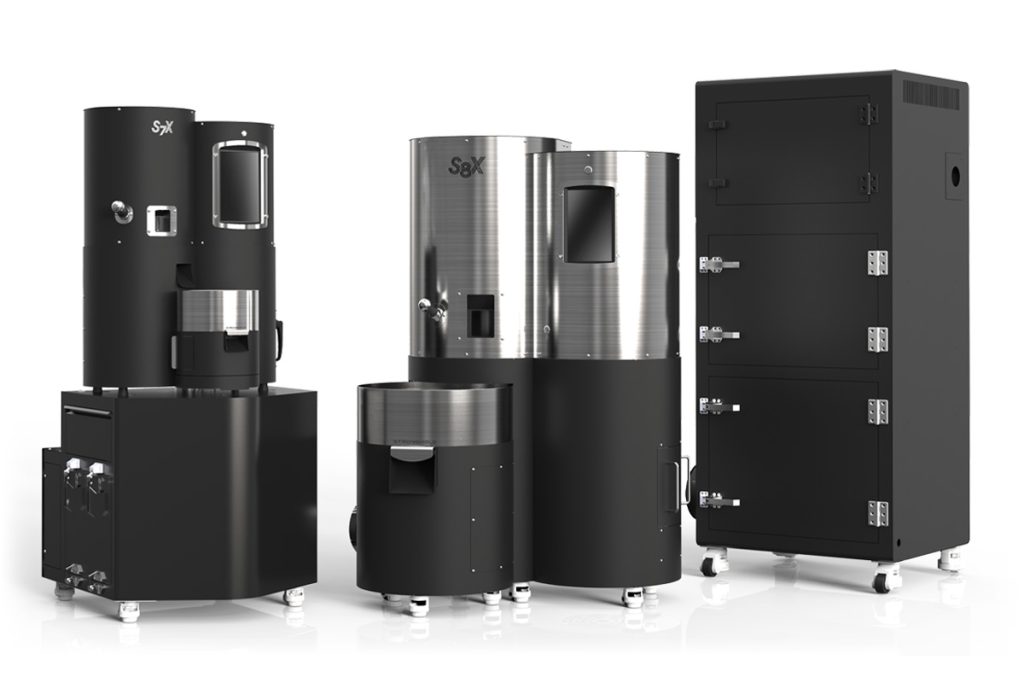

Improved cooling tray design made space efficient, better roasting productivity without compromising work space. S8X excels in productivity and efficiency among its class.
Roasters' choice for consistency
Smoke filters allow for uniform exhaust airflow to further ensure consistent roasting
Filter Replacement Frequency and Cost
Chaff filter
Demister
Glass filter
Pre filter
Medium filter
HEPA filter
Carbon activated filter
Filter Replacement Frequency
Washable (semi-permanent)
Washable (semi-permanent)
Replace after 200 batches
Replace after 100 batches
Replace after 300 batches
Replace after 300 batches
Replace upon detection of unpleasant odors
※ If you would like to purchase filters, please contact the HQ or official distributors.
※ Filter lifespan and replacement frequencies can vary based on usage, environment and other factors.
※ Filter lifespan and replacement frequencies can vary based on usage, environment and other factors.
Smoke Filter specifications
J7
Specifiactions
Dimensions(w*d*h)
Rated Voltage
Energy Consumption
Exhaust diameter
Inlet Airflow
747 × 859 × 1410 mm
220V / 60Hz
210W
⌀ 100mm
0.35hp
J7
Specifiactions
Dimensions,(w*d*h)
Rated Voltage
Energy Consumption
Exhaust diameter
Inlet Airflow
747 × 859 × 1410 mm
220V / 60Hz
210W
⌀ 100mm
0.35hp
JT
Specifiactions
Dimensions(w*d*h)
Rated Voltage
Energy Consumption
Exhaust diameter
Inlet Airflow
653 × 840 × 1955 mm
380V / 60Hz
1.5kW
⌀ 246mm
2hp
J7
Specifiactions
Dimensions(w*d*h)
Rated Voltage
Energy Consumption
Exhaust diameter
Inlet Airflow
747 × 859 × 1410 mm
220V / 60Hz
210W
⌀ 100mm
0.35hp
J7
Specifiactions
Dimensions,(w*d*h)
Rated Voltage
Energy Consumption
Exhaust diameter
Inlet Airflow
747 × 859 × 1410 mm
220V / 60Hz
210W
⌀ 100mm
0.35hp
JT
Specifiactions
Dimensions(w*d*h)
Rated Voltage
Energy Consumption
Exhaust diameter
Inlet Airflow
653 × 840 × 1955 mm
380V / 60Hz
1.5kW
⌀ 246mm
2hp
Compare Smoke Filter Specifications
J7
Dimensions
(Width x Depth x Height)
747 × 859 × 1410 mm
Rated Voltage
220V / 60Hz
Energy Consumption
210W
Exhaust diameter
⌀ 100mm
Inlet Airflow
0.35hp
JT
Dimensions
(Width x Depth x Height)
653 × 840 × 1955 mm
Rated Voltage
380V / 60Hz
Energy Consumption
1.5kW
Exhaust diameter
⌀ 246mm
Inlet Airflow
2hp
